Initial Startup Checks

This section provides a list of steps to help confirm the pin settings in the Klipper printer.cfg file. During this guide, it may be necessary to make changes to the Klipper config file. Be sure to issue a RESTART command after every change to the config file to ensure that the change takes effect (type “restart” in the Octoprint or Mainsail terminal and then click “Send”). It’s also a good idea to issue a STATUS command after every RESTART to verify that the config file is successfully loaded.

Any time commands are requested to be issued, those will happen in the ‘Terminal’ or ‘Console’ tab of the OctoPrint, Mainsail, or Fluidd web UI, in the box for entering commands directly.

Any time movements need to be made, those will happen in the ‘Control’ tab / section of the Octoprint, Mainsail, or Fluidd web UI. The numbers underneath X, Y, and Z control the movement distance.

Verify Temperature

Start by verifying that temperatures are being properly reported. Navigate to the Octoprint/Mainsail temperature graph.

Verify that the temperature of the nozzle and bed are present and not increasing. If it is increasing, remove power from the printer. If the temperatures are not accurate, review the sensor_type and sensor_pin settings for the extruder and/or bed.

Verify heaters

Navigate to the temperature graph and type in 50 followed by enter in the “Tool” temperature target field. The extruder temperature in the graph should start to increase (within about 10 seconds or so). Then go to the “Tool” temperature drop-down box and select “Off”. After several minutes the temperature should start to return to its initial room temperature value. If the temperature does not increase, then verify the heater_pin setting in the config.

Perform the above steps again with the bed.

Verify cooling fans

Typically there are three types of cooling fan which you must verify are working correctly.

  • Hotend fan: Verify by heating the hotend. The heatsink cooling fan should be spinning whenever the hotend is active or above 50C. This is essential to prevent clogging.
  • Part cooling fan: Use the Octoprint/Mainsail interface to set the part cooling fan to 100%. You should be able to hear the fan(s) and feel air being blown just under the nozzle, where your print would be.
  • Controller fan: These vary by config, but typically will be triggered by heating the bed (and won’t turn off until the printer has been idle for a while).

Stepper Motor Check

To verify that each stepper motor is operating correctly, send the following command in the terminal:

STEPPER_BUZZ STEPPER=stepper_x

The STEPPER_BUZZ command will cause the given stepper to move one millimeter in a positive direction and then it will return to its starting position. It will perform this oscillation ten times. we will verify direction again later, ideally all motors will be running correctly at the end of this test. See the list below for the expected motion for each command.

Note, if you have trouble seeing what direction a motor is rotating, try adding a small sharpy mark on the pulley. clockwise and counterclockwise are from the top down view looking at the X and Y motors.

Run this command for each of the motors:

Motor Expectation

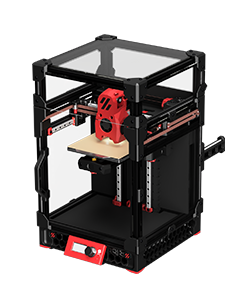

Voron 0
stepper_x The motor will rotate clockwise first, then back counterclockwise
stepper_y The motor will rotate clockwise first, then back counterclockwise
stepper_z The bed moves down, then back up
extruder Movement: Direction will be tested later

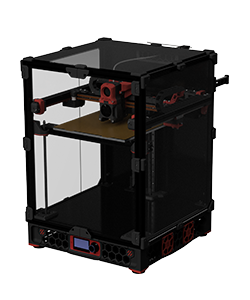

Voron 1, Legacy
stepper_x The motor will rotate clockwise first, then back counterclockwise
stepper_y The motor will rotate clockwise first, then back counterclockwise
stepper_z the left side of the bed moves down, then back up
stepper_z1 the right side of the bed moves down, then back up
extruder Movement: Direction will be tested later
Trident
stepper_x The motor will rotate clockwise first, then back counterclockwise
stepper_y The motor will rotate clockwise first, then back counterclockwise
stepper_z The front left corner of the bed moves down, then back up
stepper_z1 The back of the bed moves down, then back up
stepper_z2 The front right corner of the bed moves down, then back up
extruder Movement: Direction will be tested later

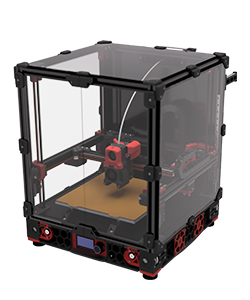

V2
stepper_x The motor will rotate clockwise first, then back counterclockwise
stepper_y The motor will rotate clockwise first, then back counterclockwise
stepper_z The front left corner of the gantry moves up, then back down
stepper_z1 The back left corner of the gantry moves up, then back down
stepper_z2 The back right corner of the gantry moves up, then back down
stepper_z3 The front right corner of the gantry moves up, then back down
extruder Movement: Direction will be tested later

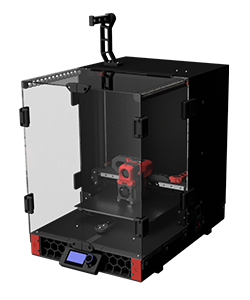

Switchwire
stepper_x The motor will rotate counterclockwise first, then back clockwise
stepper_y the bed moves towards the front, then back.
stepper_z The motor will rotate counterclockwise first, then back clockwise
extruder Movement: Direction will be tested later

If the stepper does not move at all, then verify the “enable_pin” and “step_pin” settings for the stepper. If the stepper motor moves but does not return to its original position then verify the “dir_pin” setting. If the stepper motor oscillates in an incorrect direction, then it generally indicates that the “dir_pin” for the axis needs to be inverted. This is done by adding a ‘!’ to the “dir_pin” in the printer config file (or removing it if one is already there). If the motor moves significantly more or significantly less than one millimeter then verify the rotation_distance setting.

V2 motor positions (Others may vary)

Endstop Check

Important: If you are building a V0.2 that requires sensorless homing, or you just want to use sensorless homing, you should follow this guide for setting up the sensorless endstops before continuing.

Make sure that none of the X, Y, or Z endstops are being pressed. Then send a QUERY_ENDSTOPS command. The terminal window should respond with the following:

Send: QUERY_ENDSTOPS
Recv: x:open y:open z:open

If any of them say “triggered” instead of “open”, double-check to make sure none of them are pressed. Next, manually press the X endstop switch, send the QUERY_ENDSTOPS command again, and make sure that the X endstop says “triggered and the Y and Z endstops stay open. Repeat with the Y and Z endstops.

If it is found that one of the endstops has inverted logic (i.e. it reads as “open” when it is pressed and “triggered” when not pressed), go into the printer configuration file (typically printer.cfg) and add or remove the ! in front of the pin identifier. For example, if the X endstop was inverted, add a ! in front of the pin number as follows:

endstop_pin: P1.28 -> endstop_pin: !P1.28

XY Homing Check

At this point everything is ready to home X and Y.

Important: You need to be able to quickly stop the printer in case something goes wrong (e.g. the tool head goes the wrong direction). There are a few ways of doing this:

  1. Use the E-stop button on the display (if installed). On the Mini12864 it is the small button underneath the main control knob. Test the button and see what happens - Klipper should shut down. Raspberry Pi and OctoPrint/Mainsail/Fluidd should still be running but disconnected from Klipper. Press “Connect” in the upper left corner of OctoPrint, then in the Octoprint terminal window send a FIRMWARE_RESTART to get the printer back up and running.
  2. Have a computer right next to the printer with the RESTART or M112 command already in the terminal command line in OctoPrint. When you start homing the printer, if it goes in the wrong direction, quickly send the restart command and it will stop the printer.
  3. As a “nuclear” option, power off the printer with the power switch if something goes wrong. This is not ideal because it may corrupt the files on the SD card and to recover would require reinstalling everything from scratch.

Once there is a tested process for stopping the printer in case of something going wrong, you can test X and Y movement. note: you will need to test X AND Y before you can correctly determine what adjustments are needed. First, send a G28 X command. This will only home X: The tool head should move up slightly and then move to the right until it hits the X endstop. If it moves any other direction, abort, take note, but still move on to testing Y. Next, test Y: run G28 Y. The toolhead should move to the back of the printer until it hits the Y endstop. In a CoreXY configuration, both motors have to move in order to get the toolhead to go in only an X or Y direction (think Etch A Sketch). If the gantry moves downward first before moving to the right, you must reverse your z stepper directions in the config.

If either axis does not move the toolhead in the expected or correct direction, refer to the table below to figure out how to correct it. If you need to invert the direction of one of the motors, invert the direction pin definition by adding a ! to the pin name. For example, dir_pin: PB2 would become dir_pin: !PB2. (if the entry already has a !, remove it instead). If the motors are going in directions that match the lower row of the chart, physically swap your X and Y (A and B) motor connectors on the MCU.

  • [stepper x] = Motor B
  • [stepper y] = Motor A

Motor Configuration Guides

V0:

V1, Legacy:

Trident:

V2:

SW:

Important: Do not unplug or re-plug motors from MCUs without powering down the printer. Damage to MCU may result.

Bed locating (V2)

The print bed location of the V2 is much more adjustable than on any of the other models. Before the 0,0 point and Z endstop locations are set, the physical locations of the Z endstop and print bed need to be finalized.

The Z endstop should be located to be in line with the nozzle, when the toolhead is at max Y position. Home X and Y with G28 X Y and then traverse just X to locate a Z endstop position at the maximum Y travel that will still trigger the endstop. Lock down the Z endstop at that position.

Once the Z endstop is fixed into position the base plate should be adjusted so that the Z endstop pin is approximately 2-3mm from the aluminum base plate. The base plate should be measured on each side to ensure it is centered and level / even with the front edge of the frame. If in that process the extrusions the base is mounted on have to be moved, double-check the Z endstop to confirm it can still be reached. When tightening the mounting screws for the bed, a good practice is to have one screw tight, 2 firm, and the last one loose (best done hot).

Bed locating (V1, Trident, Legacy)

Before the 0,0 point and Z endstop locations are set, the physical locations of the Z endstop and print bed need to be finalized.

V1, Legacy:

The Z endstop should be located as close to max X position as possible. Home X and Y with G28 X Y and then traverse just Y to locate a Z endstop position at the maximum X travel that will still trigger the endstop. Lock down the Z endstop at that position.

Trident:

The Z endstop should be located as close to max Y position as possible. Home X and Y with G28 X Y and then traverse just X to locate a Z endstop position at the maximum Y travel that will still trigger the endstop. Lock down the Z endstop at that position.

Once the Z endstop is fixed into position the base plate should be adjusted so that the Z endstop pin is approximately 2-3mm from the aluminum base plate.

Define 0,0 Point (V1, Trident, V2, Legacy)

The homing position is not at the typical location of 0,0 but at the maximum travel location. The actual numbers vary by printer build size.

Depending on bed location, the positional parameters may need to be adjusted to re-locate the 0,0 point.

  1. Start by re-running G28 X Y to home X and Y. After this, the nozzle will be at the maximum X,Y as defined by position_max under [stepper_x] and [stepper_y].
  2. Using the OctoPrint or Mainsail controls, move the nozzle to the front left corner of the bed.
  3. If the left corner of the bed cannot be reached within 3-5mm, the bed location needs to be physically adjusted (if possible). Move the bed on the extrusions or move the extrusions to get the bed location within range.
    • For V2, make sure whatever bed position results still allows the nozzle to reach the Z endstop switch (See ‘Bed Locating’).
    • If questionable, turn off motors and attempt to move the gantry by hand to see if the front left corner can physically be reached by the nozzle.
  4. Once the nozzle is close to the front left corner of the bed but still on the bed, send an M114 command to retrieve the current location.
    • Note: Due to other tolerances, it is usually not recommended to have the 0,0 exactly on the corner of the bed or build surface. Spec bed sizes are always slightly larger than the defined print volume so print volume loss will be minimal.

If X and Y offsets are less than 1mm and 0,0 is over the bed, nothing needs to be changed.

If X and Y offsets are within 5mm or 0,0 is past the bed, the position_max values should be adjusted to change where the 0,0 point is computed. If the 0,0 is over the bed, the distance from the home point to the front left (position_max) must be increased. If the 0,0 is past the bed, the distance must be decreased. The amount is determined by the output of the M114 command. Update position_max and position_endstop for both [stepper_x] and [stepper_y] as follows:

  • For X: New = Current - Get Position X (M114) Result
  • For Y: New = Current - Get Position Y (M114) Result

If the Z endstop pin location has been previously defined, be sure to re-follow the process to set the Z endstop pin location (if applicable).

If anything is updated in the printer configuration file, save the file and restart Klipper using FIRMWARE_RESTART.

Z Endstop Pin Location (V1, Trident, V2, Legacy)

  • Start by re-running G28 X Y to home X and Y.
  • Using the software controls, move the nozzle until it is directly over the Z endstop switch.
  • Send an M114 command and record the X and Y values.
  • Update the homing routing in the printer configuration file under [homing_override] or [safe_z_home] with those values.
  • Restart Klipper with FIRMWARE_RESTART.
  • Run a full G28 and make sure that the printer properly homes X, Y, and Z.

Z Endstop Location (V0)

The V0.0 and v0.1 uses the bed assembly to contact the Z endstop switch via an adjustable screw in the T8 nut block. Ideally the activation of that switch will be at the exact bed height at which your nozzle also reaches the bed surface. However there is a window of travel from the moment that switch is activated to the point at which that switch bottoms out, this window is about 0.6mm. by using the adjustable screw in the T8 nut block and by being able to physically move the endstop switch up or down along the extrusion you need to position these so that the point at which your nozzle touches the bed (your Z0 point) happens within that 0.6mm window of travel. You can then use the Z_ENDSTOP_CALIBRATEroutine to then tell your printer where within that window you land, or in other words, what the offset between the z0 position and the endstop trigger point is.

For V0.2 the Z endstop is located at the bottom of the machine. After homing Z you can use the Z_ENDSTOP_CALIBRATEcommand to find the correct position_endstop value automatically. we will use a piece of copy paper to set the height of our nozzle relative to the endstop position, do this test with your nozzle cold. When the nozzle is heated, its position (relative to the bed) changes due to thermal expansion. This thermal expansion is typically around a 100 microns, which is about the same thickness as a typical piece of printer paper. The exact amount of thermal expansion isn’t crucial, just as the exact thickness of the paper isn’t crucial. Start with the assumption that the two are equal.

Run the Z_ENDSTOP_CALIBRATEcommand, if you are using mainsail a dialog box will open that allows you to move the nozzle up and down by preset amounts. If you are NOT using mainsail you will have to manually issue nozzle movement commands TESTZ Z= those manual instructions can be found HERE. Place a piece of copy paper under the nozzle and lower the nozzle in small increments, after each movement push the paper back and forth to check if the nozzle is in contact with the paper and to feel the amount of friction. Continue issuing commands until you feel a small amount of friction when testing with the paper. If too much friction is found then you can use a positive Z value to move the nozzle up. Once you have found the proper height click the ACCEPT button or manually issue the ACCEPT command. You then need to issue the SAVE_CONFIG command to save the value to the bottom of your config file.

This value that we just calculated is now in your config and it represents the distance from the point that the nozzle touches the bed surface to when the bed assembly triggers the z endstop switch. It also represents your maximum Z travel distance. This value can be edited manually as well.

Inductive Probe Check (V1, Trident, V2, Switchwire, Legacy)

Probe Testing

With the toolhead in the center of the bed, reconfirm that the probe is working correctly.

When it is far from the bed, QUERY_PROBE should return “open”. When a metal object is close to the probe, QUERY_PROBE should return “triggered”. If the signal is inverted, add a “!” In front of the pin definition (ie, pin: ! z:P1.24).

Slowly reduce your Z height and run QUERY_PROBE each time until QUERY_PROBE returns “triggered” - make sure the nozzle is not touching the print surface (and has clearance).

Probe Accuracy Check

With the bed and hotend cold (for now), move the probe to the center of the bed and run PROBE_ACCURACY. It will probe the bed 10 times in a row and output a standard deviation value at the end. Make sure that the sensed distance is not trending (gradually decreasing or increasing over the 10 probes) and that the standard deviation is less than 0.003mm.

Example of unstable PROBE_ACCURACY (trending downward during warm up).

Send: PROBE_ACCURACY
Recv: // PROBE_ACCURACY at X:125.000 Y:125.000 Z:7.173 (samples=10 retract=2.000 speed=2.0
Send: M105
Recv: // probe at 125.000,125.000 is z=4.975000
Recv: // probe at 125.000,125.000 is z=4.960000
Recv: // probe at 125.000,125.000 is z=4.955000
Recv: // probe at 125.000,125.000 is z=4.952500
Recv: // probe at 125.000,125.000 is z=4.950000
Recv: // probe at 125.000,125.000 is z=4.947500
Recv: // probe at 125.000,125.000 is z=4.942500
Recv: // probe at 125.000,125.000 is z=4.937500
Recv: // probe at 125.000,125.000 is z=4.937500
Recv: // probe at 125.000,125.000 is z=4.932500
Recv: // probe accuracy results: maximum 4.975000, minimum 4.932500, range 0.042500, average 4.949000, median 4.948750,
standard deviation 0.011948

PID Tune Bed & Hotend

The PID tune is important for tuning the printer for a given hardware configuration to ensure that temperatures can remain as stable as possible during operation.

PID Tune Heated Bed

Move nozzle to the center of the bed and approximately 5-10mm above the bed surface, then run:

PID_CALIBRATE HEATER=heater_bed TARGET=100

It will perform a PID calibration routine that will last about 10 minutes. Once it is finished, type SAVE_CONFIG which will save the parameters into your configuration file.

PID Tune Hotend

Set the part cooling fans to 25% (M106 S64) and then run:

PID_CALIBRATE HEATER=extruder TARGET=245

It will perform a PID calibration routine that will last about 5 minutes. Once it is finished, type SAVE_CONFIG which will save the parameters into your configuration file.

Bed Leveling

Depending on the printer type and capability, the following command(s) are used:

  • V0: BED_SCREWS_ADJUST
  • V1, Legacy: BED_TILT, SCREWS_TILT_CALCULATE
  • Trident: Z_TILT_ADJUST
  • V2: QUAD_GANTRY_LEVEL

Bed Screws (V0)

The V0 uses manual bed leveling. The bed is small enough and thick enough that a mesh or other types of per print leveling should not be needed. There is a macro in Klipper to help with the manual bed leveling process: BED_SCREWS_ADJUST

This tool will move the printer’s nozzle to each screw XY location and then move the nozzle to a Z=0.3 height. At this point one can use the “paper test” to adjust the bed screw directly under the nozzle. See the information described in “the paper test”, but adjust the bed screw instead of commanding the nozzle to different heights. Adjust the bed screw until there is a small amount of friction when pushing the paper back and forth. This process will move all three mounting points of your bed closer to the nozzle so it is critical that you re-run the Z offset adjust after completing this section.

Once the screw is adjusted so that a small amount of friction is felt, run either the ACCEPT or ADJUSTED command. Use the ADJUSTED command if the bed screw needed an adjustment (typically anything more than about 1/8th of a turn of the screw). Use the ACCEPT command if no significant adjustment is necessary. Both commands will cause the tool to proceed to the next screw. (When an ADJUSTED command is used, the tool will schedule an additional cycle of bed screw adjustments; the tool completes successfully when all bed screws are verified to not require any significant adjustments.) One can use the ABORT command to exit the tool early.

After the BED_SCREWS_ADJUST command has been completed rerun the Z_ENDSTOP_CALIBRATE command to to bring your nozzle to the correct Z=0 position.

Bed Tilt (V1, Legacy)

The V1 and Legacy use a combination of automated and manual bed leveling. There are two macros built into Klipper to assist with the function.

First, run the BED_TILT macro. This will go back and forth between the predefined points to level the two Z motors. This setting is dynamically changed and nothing will need to be saved.

Second, run the SCREWS_TILT_CALCULATE macro. It will check the 3 positions defined in the [screws_tilt_adjust section] of printer.cfg for level, then return how much to adjust the front thumbscrew by. Re-run the process at least one more time to verify the adjustment.

After both processes have been completed rerun the Z_ENDSTOP_CALIBRATE command to to bring your nozzle to the correct Z=0 position.

Z Tilt (Trident)

The Trident uses automated bed leveling using 3 motors. There is a macro Z_TILT_ADJUST built into Klipper for that function. It is very similar to the QUAD_GANTRY_LEVEL used by V2, but supports 3 or more motors. Run the Z_TILT_ADJUST and it will probe each of the 3 points 3 times, average the readings, then make adjustments until the gantry is level.

After that process has been completed, re-home z by running G28 Z, and then rerun the Z_ENDSTOP_CALIBRATE command to bring your nozzle to the correct Z=0 position.

Quad Gantry Level (V2)

Since the V2 uses 4 independent Z motors, the entire gantry system must be specially levelled. The macro to call this process is QUAD_GANTRY_LEVEL (sometimes referred to in conversation as ‘QGL’). It will probe each of 4 points 3 times, average the readings, then make adjustments until the gantry is level.

If the process fails due to an “out of bounds” error, disable your stepper motors and slowly move your gantry or bed by hand until it is approximately flat. Re-home your printer (G28) and then rerun the sequence. You may have to run it more than once. Make sure that the adjustment value for each stepper motor converges to 0. If it diverges, check to make sure you have your stepper motors wired to the correct stepper driver (check documentation).

Tilt / QGL With Heated Bed and Chamber (V1, Trident, V2)

Run a G28 command to home the printer since a SAVE_CONFIG restarts the printer.

This will be the first time that a Quad Gantry Level has been run at a high chamber temperature. To ensure that the probe has stabilized with the heated bed at 100C and the hot end at 240C, run PROBE_ACCURACY with the nozzle at the center of the bed. If the values are trending (increasing or decreasing) throughout the 10 probes or the standard deviation is greater than 0.003mm, wait another 5 minutes and try again.

Once the readings are stable, run Z_TILT_ADJUST or QUAD_GANTRY_LEVEL. Make a note of how long the probe readings took to stabilize for when starting prints - typically a cold printer takes 10-20 minutes to stabilize at temperature.

Common QGL Problems

  • If the QGL is having issues with too high of a standard deviation and the printer is heated and stable, check Z belt tension. Make sure they are reasonably tight and even.
  • If QGL fails with being unable to reach the probe in time, do a FIRMWARE_RESTART, manually level the bed as closely as possible, then home (G28) and re-attempt.

Z Offset Adjustment

If you did not run PID tuning, set your extruder to 245C and heated bed to 100C and let the printer heat up for at least 15 minutes.

Initial / Simple Process

Preparation

  • V1/Trident: Run a G28, and then a Z_TILT_ADJUST, and then another G28.
  • V2: Run a G28, and then a QUAD_GANTRY_LEVEL, and then another G28.
  • All others: Run a G28.
  • Move the nozzle to the center of the bed if it is not already.
  • Clear any stored bed meshes with BED_MESH_CLEAR

Run Z_ENDSTOP_CALIBRATE (V0, Trident, V2) or PROBE_CALIBRATE (Switchwire)

Slowly move the nozzle toward the bed by using TESTZ Z=-1 until the nozzle is relatively close to the bed, and then stepping down with TESTZ Z=-0.1 until the nozzle touches a piece of paper on top of the build plate. If you go too far down, you can move the nozzle back up with: TESTZ Z=0.1. Once you are satisfied with the nozzle height, run ACCEPT and then SAVE_CONFIG.

Important: Klipper assumes that this process is being done cold. If being performed hot, do an additional TESTZ Z=-0.1 before accepting.

If an “out of bounds” error occurs, send Z_ENDSTOP_CALIBRATE, ACCEPT, and then SAVE_CONFIG. This will redefine the 0 bed height so you will be able to get closer.

V2: If you get this error it likely means that the shaft for your Z Endstop is too long and may catch on the print head during a print. It is best to cut the shaft or raise the bed (with a washer, for instance) so that it is within 1mm of the build surface.

Fine Tuning Z Height

With LCD Screen

The Z offset can be adjusted during a print using the Tune menu on the display, and the printer configuration can be updated with this new value. Remember that higher values for the position_endstop means that the nozzle will be closer to the bed.

Mainsail and Fluidd

The “babystepping” controls may be used to fine tune the z offset.

Without LCD Screen

If you’re running your printer headless, the Z height can still be adjusted on-the-fly using the web interface. This is built into Mainsail and Fluidd, but requires some additional work for Octoprint.

  1. (Optional) Create macros in your printer.cfg file so that the commands are easier to remember/run:
[gcode_macro ZUP]
gcode:
    SET_GCODE_OFFSET Z_ADJUST=0.01 MOVE=1

[gcode_macro ZDOWN]
gcode:
    SET_GCODE_OFFSET Z_ADJUST=-0.01 MOVE=1
  1. Run ZUP or ZDOWN (or the associated SET_GCODE_OFFSET command) as needed in the terminal window until you have perfected your squish.
  2. Run GET_POSITION and look for “gcode base”. Note the Z value.

Saving your results (V0, Trident, V2)

All of the above methods are “transient”. The changes are lost as soon as your printer restarts. Once you find an adjustment you are happy with, you may make it permanent, by applying it to the position_endstop in your config file: run the command Z_OFFSET_APPLY_ENDSTOP followed by SAVE_CONFIG. This will restart your printer, with the adjustment permanently applied to the endstop position.

Saving your results (Switchwire)

All of the above methods are “transient”. The changes are lost as soon as your printer restarts. Once you find an adjustment you are happy with, you may make it permanent, by applying it to the probe’s z_offset in your config file: run the command Z_OFFSET_APPLY_PROBE followed by SAVE_CONFIG. This will restart your printer, with the adjustment permanently applied to the probe offset.

Community References

Z Endstop Configuration

Extruder Calibration (e-steps)

Before the first print, make sure that the extruder extrudes the correct amount of material.

  • First, make sure the extruder is running the correct direction: heat the hotend, and extrude 10mm or so of filament:
    • If the extruder pulls the filament in, all is well.
    • If the filament gets pushed back out the top, , reverse the extruder in your printer.cfg by finding the [extruder] dir_pin, and adding a ! to the pin name. (if one is already present, remove it instead)
  • With the hotend at temperature, make a mark on the filament between the roll of filament and your extruder, between 120mm and 150mm away from the entrance to the extruder. Measure the distance from the entrance of the extruder to that mark.
  • In Octoprint / Mainsail, set the extrusion speed to 1mm/s, and extrude 50mm 2 times, (for a total of 100mm since Klipper doesn’t allow you to extrude more than 50mm at a time).
  • Measure from the entrance of your extruder to the mark you made previously.
    • In a perfect world, assuming the mark was at 120mm, it would measure 20mm (120mm - 20mm = 100mm), but usually won’t be.
  • Update rotation_distance in the extruder section of the configuration file using this formula:
    • New Config Value = Old Config Value * (Actual Extruded Amount/Target Extruded Amount)

Note: a higher configuration value means that less filament is being extruded.

Paste the new value into the configuration file, restart Klipper, and try again. Once the extrusion amount is within 0.5% of the target value (ie, 99.5-100.5mm for a target 100mm of extruded filament), the extruder is calibrated!

Typical rotation_distance values should be around 22.6789511 for Afterburner, Stealthburner and Mobius (update gear_ratio to 50:10 for Stealthburner with Clockwork 2 or 80:20 for Mobius).

Next: Slicer Setup
